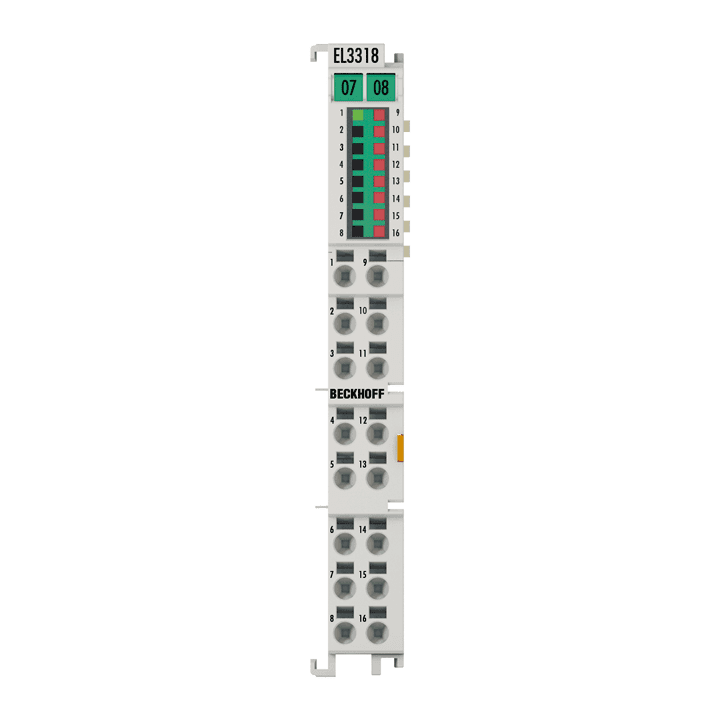

Beckhoff EL3318 HD EtherCAT Terminali

Name: Beckhoff EL3318 HD EtherCAT Terminali
SKU: 273620
Availability: OutOfStock

₺43.643,05 KDV Dahil
€690,54

Stokta yok

Stok kodu: 273620 Kategoriler: OTOMASYON

div>Beckhoff EL3318 HD EtherCAT Terminali

Açık devre tanıma özellikli 8 kanallı termokupl girişi

EL3318 analog giriş terminali, sekiz termokuplun doğrudan bağlanmasına izin verir ve bu nedenle özellikle kontrol kabinlerinde yerden tasarruf sağlayan kullanım için uygundur. EtherCAT Terminal devresi, 2 telli tekniği kullanarak termokupl sensörlerini çalıştırabilir. Bir mikroişlemci, serbestçe seçilebilen tüm sıcaklık aralığı boyunca doğrusallaştırmayı yönetir. Hata LED’leri, kopuk bir kabloyu gösterir. Soğuk bağlantı için telafi, terminalde bir dahili sıcaklık ölçümü ile yapılır. EL3318, mV ölçümü için de kullanılabilir.

Yüksek paketleme yoğunluğuna sahip HD EtherCAT Terminalleri (Yüksek Yoğunluk), 12 mm terminal bloğunun muhafazasında 16 bağlantı noktasına sahiptir.

Technical data	EL3318
Number of inputs	8
Power supply	via the E-bus
Thermocouple sensor types	types K, J, L, E, T, N, U, B, R, S, C (default setting type K), mV measurement
Signal type	differential
Distributed clocks	–
Input filter limit frequency	typ. 1 kHz; depending on sensor length, conversion time, sensor type
Connection method	2-wire
Wiring fail indication	yes
Conversion time	approx. 5 s up to 40 ms, depending on configuration and filter setting, default: approx. 500 ms
Voltage measurement	±30 mV…±75 mV
Temperature range	in the range defined in each case for the sensor (default setting: type K; -200…+1370 °C); voltage measurement: ±30 mV…±75 mV
Resolution	0.1 °C per digit
Measuring error	< ±0.3 % (relative to full scale value)
Electrical isolation	500 V (E-bus/signal voltage)
Current consumption power contacts	–
Current consumption E-bus	typ. 210 mA
Bit width in the process image	8 x 32 bit TC input, 8 x 16 bit TC output
Configuration	no address setting, configuration via the controller
Conductor types	solid wire, stranded wire and ferrule
Conductor connection	solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver
Rated cross-section	solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm²
Special features	open-circuit recognition
Weight	approx. 70 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/variable
Approvals/markings	CE, UL, ATEX, IECEx, cFMus
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc

Housing data	EL-12-16pin
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	Labeling of the BZxxx series
Wiring	solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG 28…16, st: AWG 22…16, f*: AWG 26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
