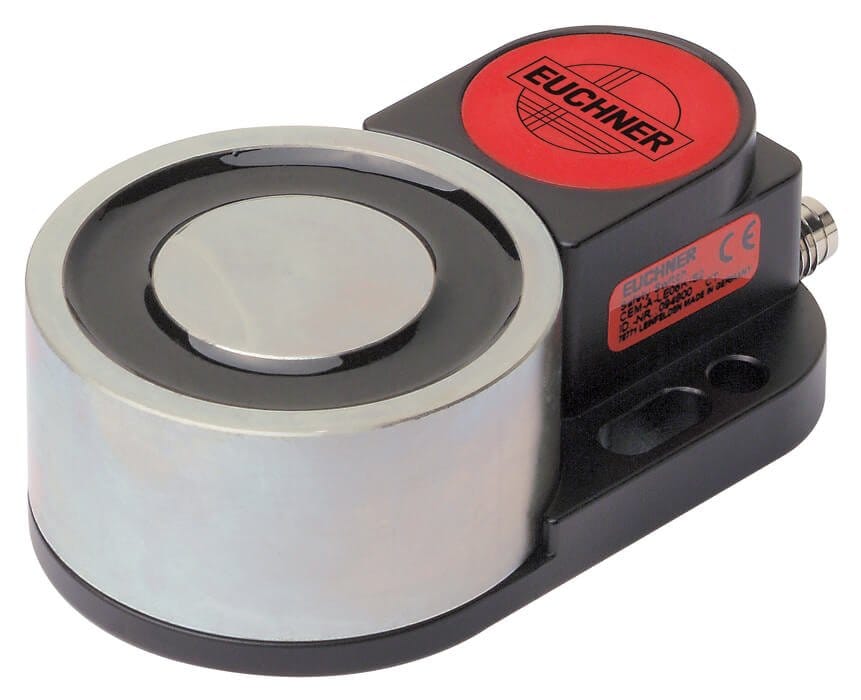

Euchner CEM-A-LE05K-S2 094800

Name: Euchner CEM-A-LE05K-S2 094800
SKU: 273086
Availability: InStock

₺28.862,63 KDV Dahil
€456,68

Uygunluk: Stokta

Stok kodu: 273086 Kategoriler: OTOMASYON Marka: Euchner

div>Euchner CEM-A-LE05K-S2 094800

Okuma kafası CEM-A-LE05 … koruma kilitlemeli, koruma kilidi izlemesiz koruma kilitli

Koruma kilidi izlemesiz kapalı tutma özellikli okuma kafası

Kilitleme kuvveti 650 N

Remanence ile

EN ISO 13849-1’e göre kategori 4’e kadar

İki M5x16 emniyet vidası dahildir

Approach direction

Note assured release distance sar = 20 mm for internal component failure. Safety outputs are reliably switched off.

Material
Read head	Plastic (PPS)
Solenoid	Steel, nickel-plated
Housing material
Housing	Die-cast aluminum
Weight
Net	0,3 kg
Ambient temperature	-25 … 50 °C
Degree of protection	IP67
Mechanical life
In case of use as door stop, and 1 Joule impact energy	1 x 106
Installation orientation	Any
Switching frequency
Solenoid	max.1 Hz
Connection
X3, read head	Plug connector M8x1, 3-pin male (with snap-action / screw terminal)
X1, solenoid (yellow LED integrated in the plug)	Plug connector M8x1, 4-pin male (with snap-action / screw terminal)
Cable length	max.25 m
Guard locking principle	Open-circuit current principle
Locking force F
(Not monitored, in axial direction) at UCM≥24V	650 N
Adhesive force
due to remanence	10 N -25% … +25%
